Twin Screw Floating Fish Feed production line

Machine Introduction

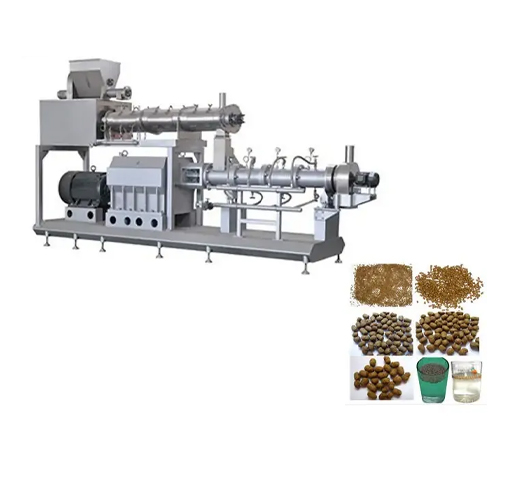

Twin Screw Floating Fish Feed production line

Twin screw fish feed extruder, also called floating fish feed machine, is widely used for produce high-grade aquatic feed pellets for fish, catfish, shrimp, crab, lobsters, etc.

We have two types of fish feed extruder, dry type and wet type model fish feed machine, through feeding materials, extruding,Forming,Filling and cutting, drying, oil spraying, packing to produce floating and sinking fish feed pellets automatically,Moreover, you can change extrusion degree to influence floating time.

This production line can greatly improve the production efficiency and quality of fish feed, promote the growth of fish, and is the best choice for fish farm breeding.

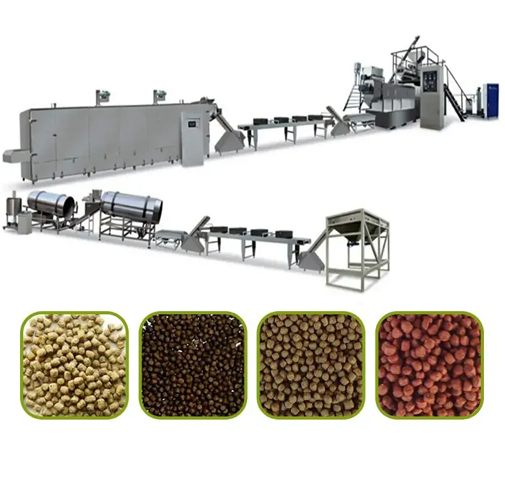

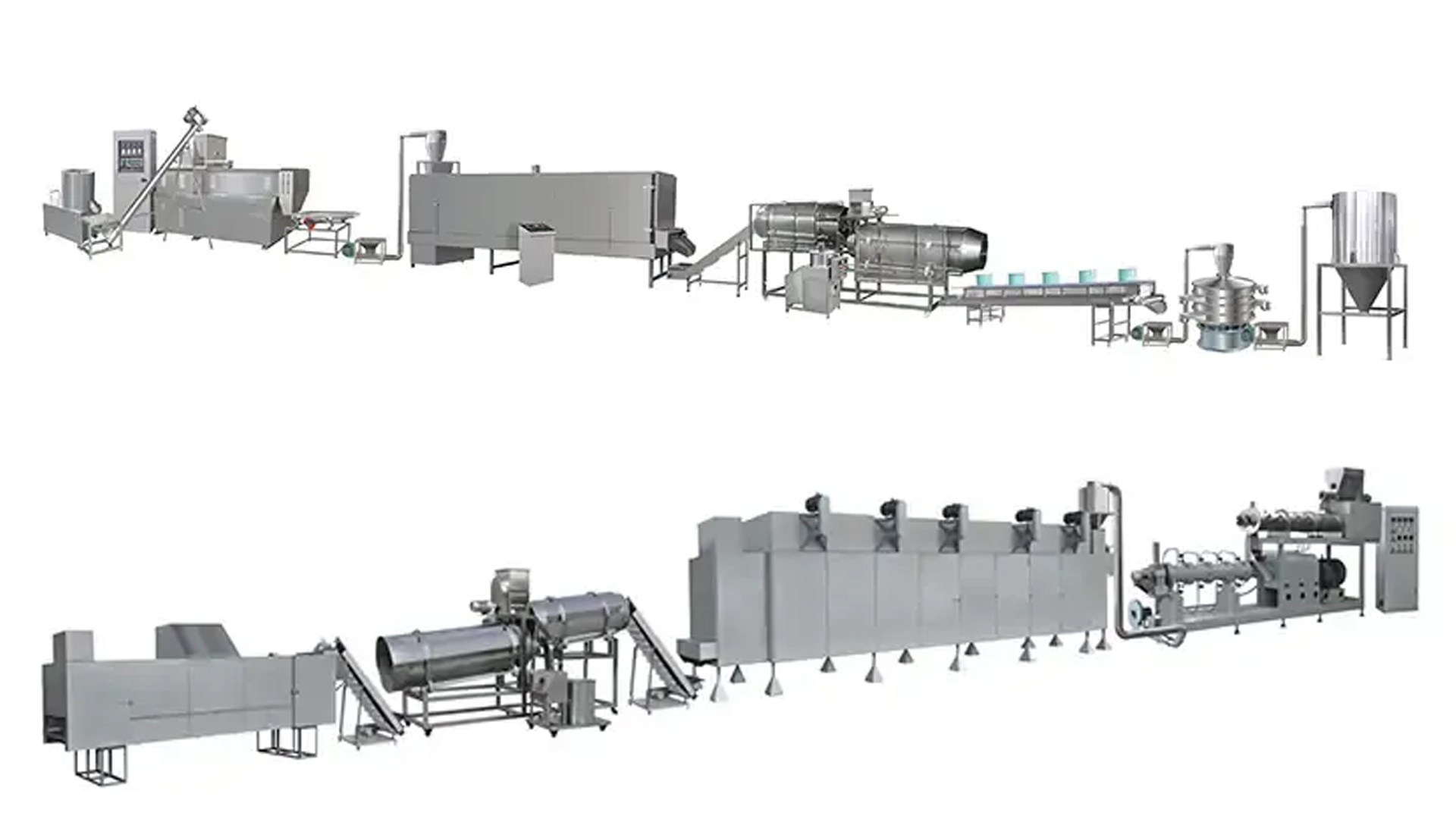

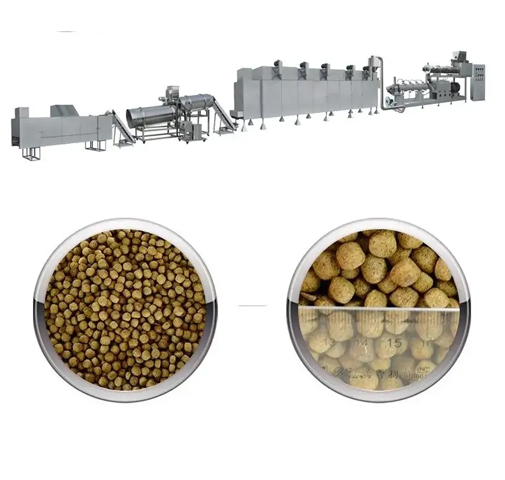

Fish feeds making production line :

Raw Materials:

Most fish feed pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal protein adopts fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.

It can also add high fat and protein raw materials, For example, fresh fish, bone, high protein content and high fat raw materials, etc.

1.Fish food made by this pellet extruder is of puffing type, more easily to digest for fishes, and our company provides various feed formulas to meet the nutritional needs of different fish and different stages of fish.

2.The fish feed pellet size can be from 0.9-10mm to feed different sizes of fishes, and are able to float on the water surface without dissolution for over 12 hours.

3.High temperature and high pressure process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.

4.Not only for making fish feed pellets, but also suitable for making feed pellets for dog, cat, bird.

5. The twin-screw equipment has self-cleaning function and can be self-cleaning without disassembly,Reduce labor intensity.

6. The twin-screw equipment has self-cleaning function and can be self-cleaning without disassembly,Reduce labor intensity.

7. The forced lubrication system ensures the smooth operation and long service life of the machine.

8.Simple structure in linear type ,easy in installation, maintation, cover small area. Running in a high autmatization and intellectualization,no pollution

9. All fish food equipments are made of stainless steel, ensure the clean and sanitary feed

10. Packing machine could be supplied to work with the fish feed production line (depending on your require).

11.Higher and lower configuration for various demands ,the whole production process needs 1-3 people to operate, saving labor cost and reducing labor intensity.

Extruder model:

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	140-160 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	240-260 kg/hr250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150kw	500-600kg/hr	30x1.5x2.6(m)
DSE - 90	132kw	75kw	800-1200kg/hr	35x2.5x3.8(m)
DSE - 95	165kw	90kw	1500-2000kg/hr	40x3.5x4.5(m)
DSE - 130	280kw	132kw	3000-3500kg/hr	45x4.5x6.0(m)

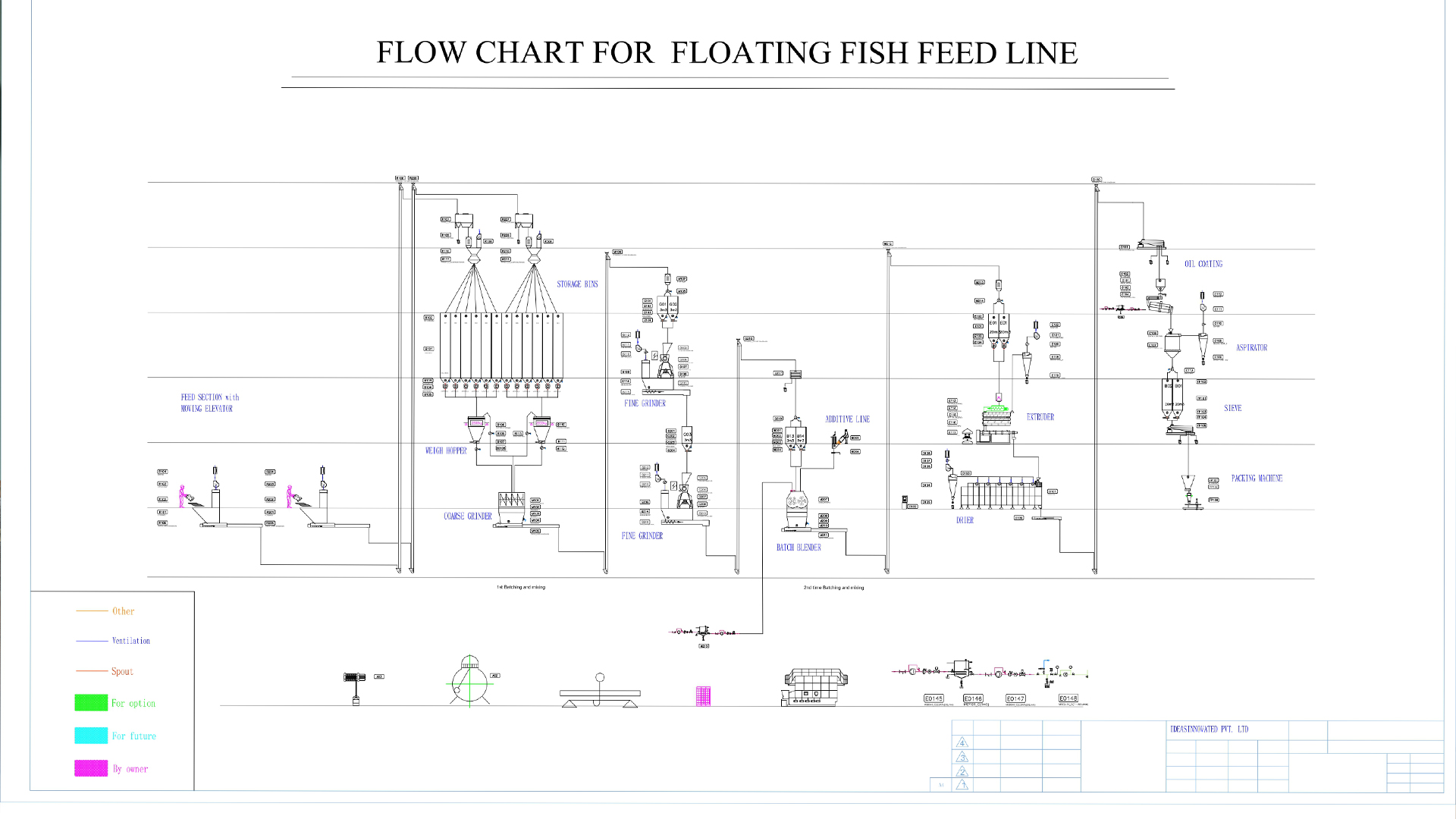

Flow chart:

Milling Machine—Mixer—Conveyer—Extruder—Conveye—Dryer—Conveyer—Flavoring machine—Cooling Machine—lifter—Packing Machine

Main equipment introduction

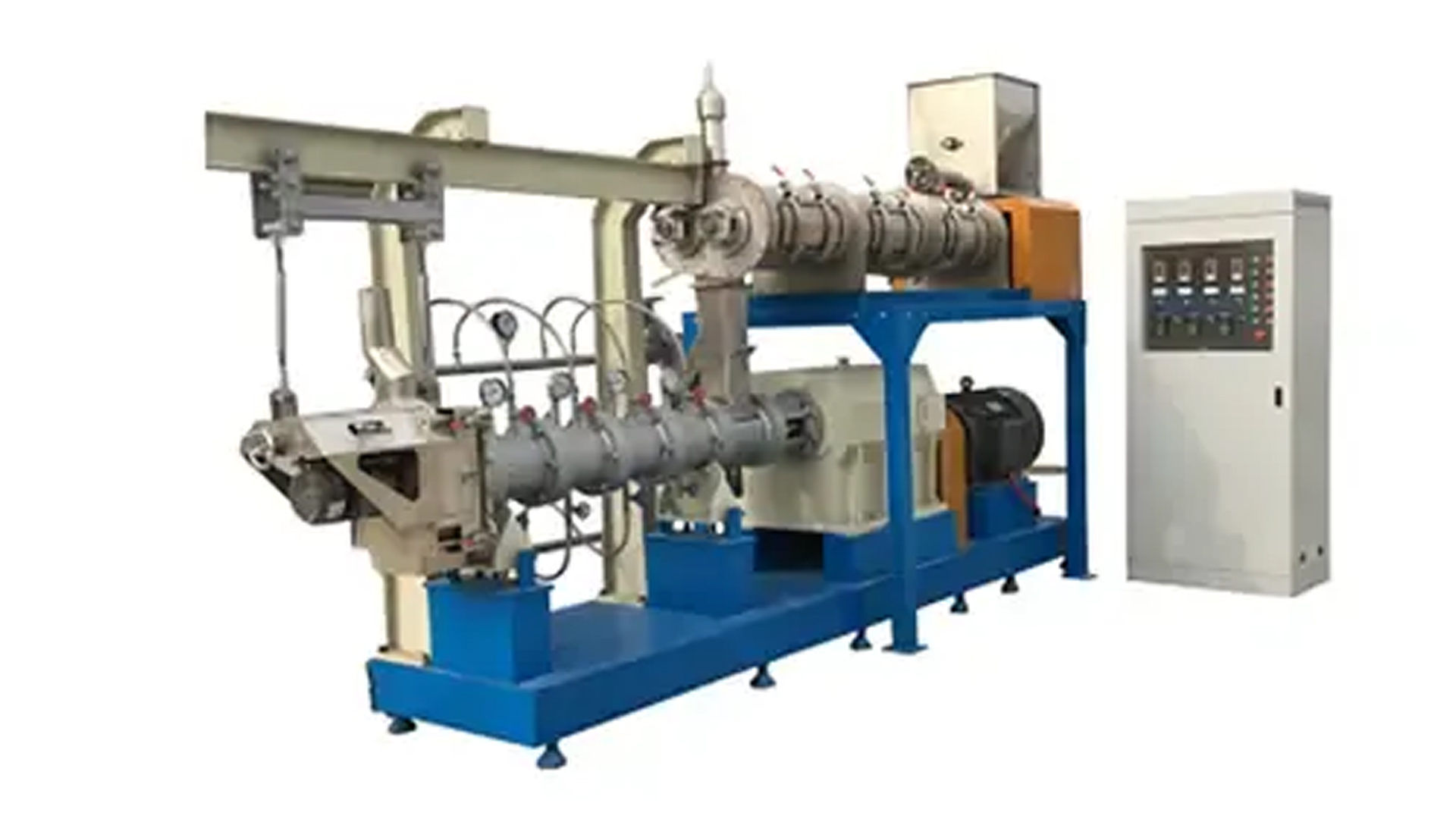

Name	Twin Screw Extruder machine
Power	22kw,30kw,75kw,110kw,160kw etc.
capacity	150kg/h,250kg/h,500kg/h,1T/h,2T/h,3T/h,4T/h,5T/h...
Use	By puff and extruding process toMake the materials mature and to be fish feeds pellets
Advantage:	(Dry type) 1.304 stainless steel food touch and protect plate, more durable, stable. 2.Equipped with heating and cooling system to precisely control the expansion temperature and improve product quality 3.Three separate inverter for main motor,cutting motor and feeding motor, to control the motor speed easily.  4.twin screw extruder, more powerful and high extrusion degree. 5.screws can be complete type or combined type, to meet different production requirement. 6.The forced lubrication system can make the working life longer 7. Self-cleaning, when stopping, it can be cleaned without disassembling 8. Adopting advanced world famous brand components(Siemens / Omron / Samsung/Schneider, etc) in electric parts and operation parts.
	(Wet type) 1.Boiler Continuously offer hot steam into the preconditioner, so materials can be fully cooked and the nutritional value is improved,thus the quality and qantity of pellets can be improved greatly with lower power consumption. 2.High temperature and high pressure process can kill salmonellosis and bacterial infections and also makes the pellets easily to digest. 3.Key parts are processed through vacuum quench treatment with high processing precision .thus have a long service life. 4.Screw sleeve adopts jacketed construction. Which can be injected in with hot sream or cooling water.thus the extruding temperature can be controlled effectively. 5 .Suitable for the production of high protein and high fat fish feed products.

Dryer

Model	Installed Power	Power Consumption	Output	Size
DSE - 65	74 kw	52 kw	140-160 kg/hr	17x1.3x2.2(m)
DSE - 70/75	105 kw	75 kw	240-260 kg/hr250-350 kg/hr	20x1.5x2.2(m)
DSE - 85	205kw	150kw	500-600kg/hr	30x1.5x2.6(m)
DSE - 90	132kw	75kw	800-1200kg/hr	35x2.5x3.8(m)
DSE - 95	165kw	90kw	1500-2000kg/hr	40x3.5x4.5(m)
DSE - 130	280kw	132kw	3000-3500kg/hr	45x4.5x6.0(m)
